Custom Silicone Bellows Cups Vacuum Suction

The vacuum suction equipment inflates the elastic rubber suction cup smoothly, adjusting the negative pressure within the elastic vacuum cup to zero or slightly positive pressure. This action allows the silicone rubber vacuum cup to release from the lifted objects, completing the task of moving the objects. Vacuum suction technology finds widespread applications in industrial

Inquiry The Products Or Relations


Custom Silicone Bellows Cups Vacuum Suction

YJC offers a wide range of vacuum components and spare parts as well as complete handling and transport solutions. Our further range includes both customer-specific industrial vacuum suction cup portfolio or solution tailored to the customer’s requirements.blank

Rubber Suction Cups & Vacuum Pads Working Principle

Connecting the elastomic rubber suction cups with the vacuum equipment via a elastomeric silicone rubber, plastic ormetal tube, then attaching with the targeted-lifted objects like glass, panel, board or paper and trigger the vacuumequipment to suck or hook, which will produce negative pressure in silicone rubber vacuum cup and then it will startmoving the targeted-lifted objects. When it has moved the targeted-lifted objects to the target place, vacuum suctionequipment will smoothly inflated into the elastic rubber suction cup to change the negative pressure in elastic vacuumcup into zero pressure or a bit of positive pressure, then the silicone rubber vacuum cup will separate from the waited.ifted obiects, then the moving obiects task finished, Vacuum Suctions is idely used inindustrral suction cupsequitment& mechanical arm, and also in our daily life.


Rubber Suction Cups Main Materials

  • Natural Rubber (NR)
  • Synthetic Rubber (SBR, NBR, EPDM
  • Silicone Rubbe
  • Thermoplastic Elastomers (TPE)
  • Polyurethane (PU)
  • Viton
  • Hypalon


Our Production Advantage for Silicone Bellows Suction Cups & Rubber Vacuum Pads

1.Precision Mold-Making Technology: such as silicone rubber compression molded parts can up to+/-0.02mm,small or mini flashing,parting line controls.

2.One-stop Service: own mold-making, rubber compression molded, plastic injection molded, silicone & LSR injection molded production and simple assembly.

3.Professional Sales Teams and Quick Reply: Our sales engineers will well work together with molddesigning department, production department and Oc department etc, in aim to producing better qualified products &parts for customers.

4.Free Design Analysis Support for Moldability and Manufacturability: we have two rich experience design engineers will cover your projects from ideas & drawings to end use.

5.Customer’s Design Patent Protection: Only accepet custom-made projects according to customers designdrawings or samples. Our company will not sell customer’s products & parts to other customers & persons. ascustomers had paid mold-making cost to us and molding belong to their properties. We can sign NDA with customers

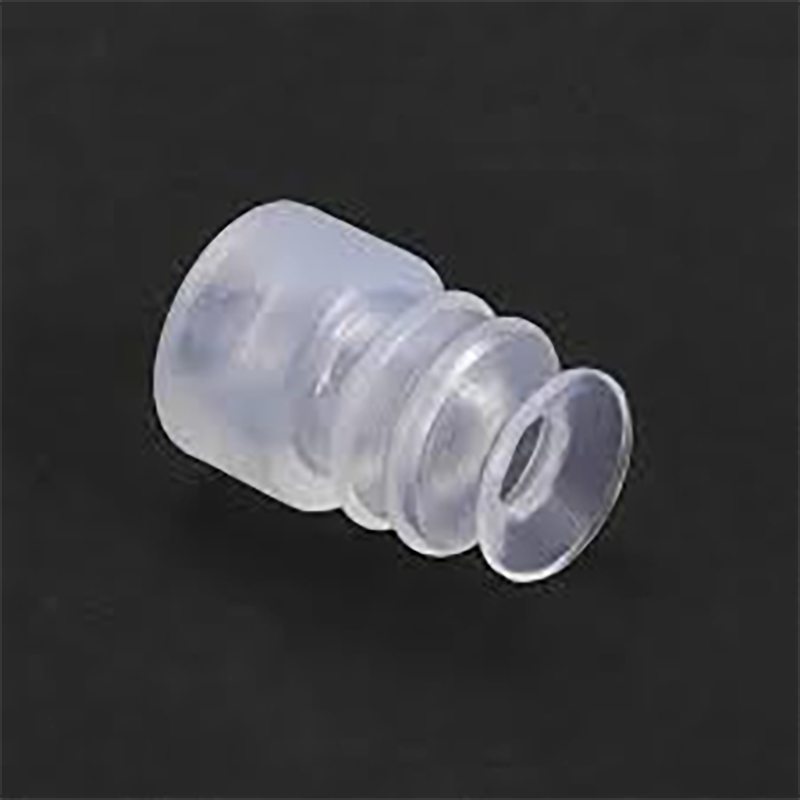

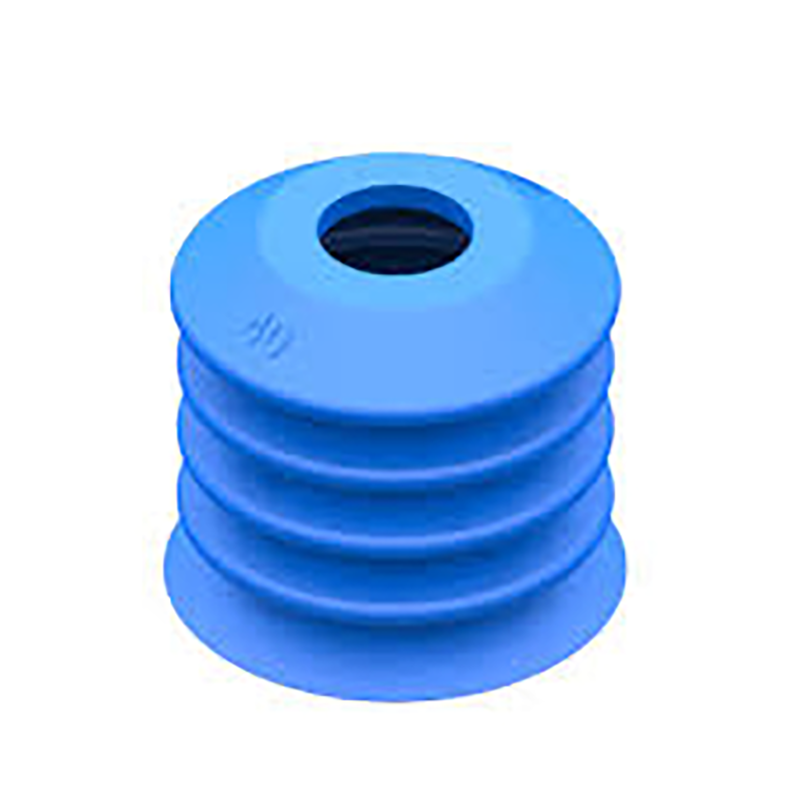

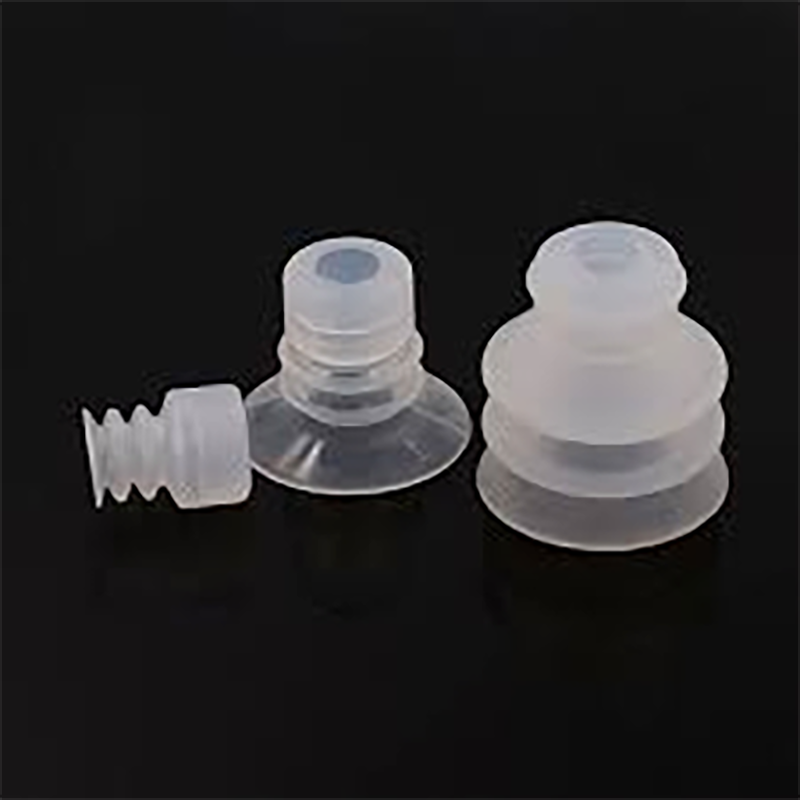

2.5 Bellows Style Vacuum Suction Cups

Bellows Suction Cups are Excellent for Concave and Convex Surfaces and Eliminate the Need for SprinaSuspensions in Many Cases 2.5 Bellows Vacuum Suction Cups attach gently and easily with minimum pressure. They are excellent for concave and convex shapes as well as on slanted surfaces. Their design can replace mechanical springs, ball swivels and height compen-sators. allowing for less complicated and more economical installations. Keeping vacuum levels a bit ower extends the ife otthe suction cups.


More Types about Vacuum Suction Cups:

  • Vacuum components
  • Industrial vacuum suction cup
  • Suction cups for glass industry
  • Suction cups for sheet metal industry
  • Suction cups for wood industry
  • Protection Cover for Suction Plates
